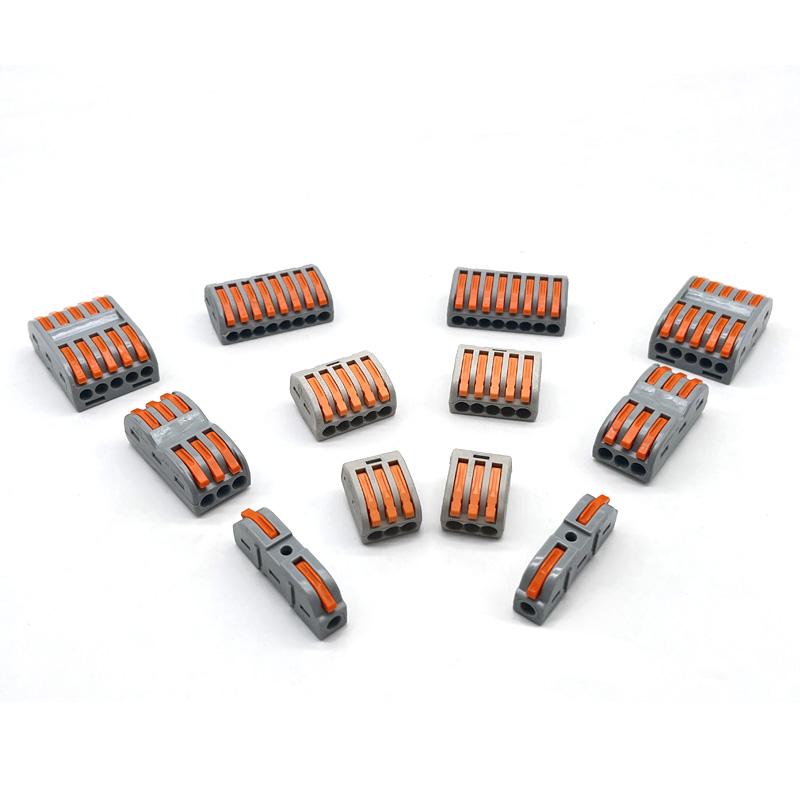

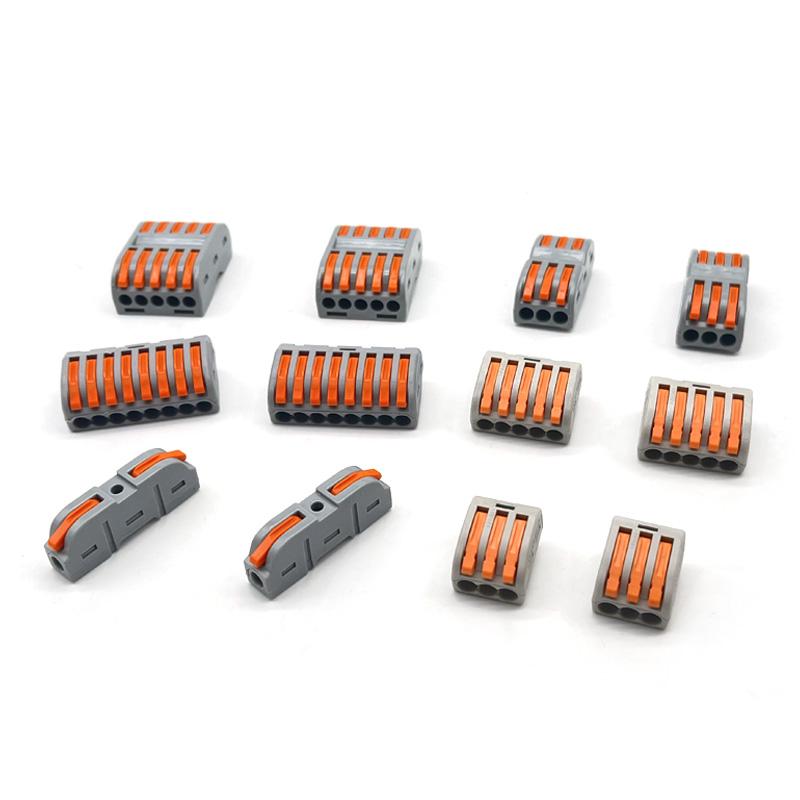

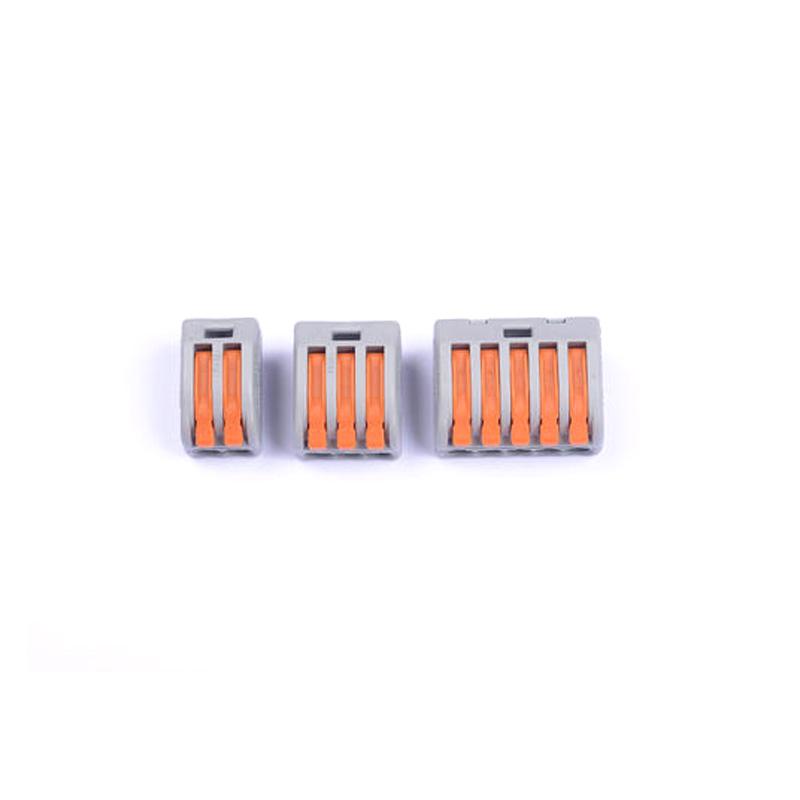

WAGO Connectors 222 Series 2/3/5 Port Lever Cage Clamp Terminal Blocks

Fast Connectors 222 Series 2 , 3 & 5 Port Lever Cage Clamp Terminal Blocks

The universal 222 Series is designed for solid, stranded and fine stranded conductors. These connectors make connecting and disconnecting radon fans easier. With a connecting range of 0.08 mm² – 2.5 mm² “s”/4 mm² “f-st”, using the 222 Series you can connect not only radon fans but also lighting fixtures, awnings, door and gate controls, intercoms, pumps, loudspeakers – even an electric stove – plus many other applications…without tools!

Item NO.:
AC-QC005
Order(MOQ):
1000
Goods Stock:
50000
Payment:
EXW
Product Origin:
China
Color:
Red,Blue,Orange,Grey
Shipping Port:
Shenzhen
Lead Time：
28 Days
Weight：
50

Inquiry now

Product Detail

Product Model	212/213/214/215/216/217/218/222/223/224/225.....
Rated Voltage	450V
Wire diameter	0.5mm~4mm
Voltage Resistance	4kV
Strip Length	11~12mm
Poles	3P or 2p 4p 5P 6P 7P 8P...
Plastic Parts	PC,UL94,V-2

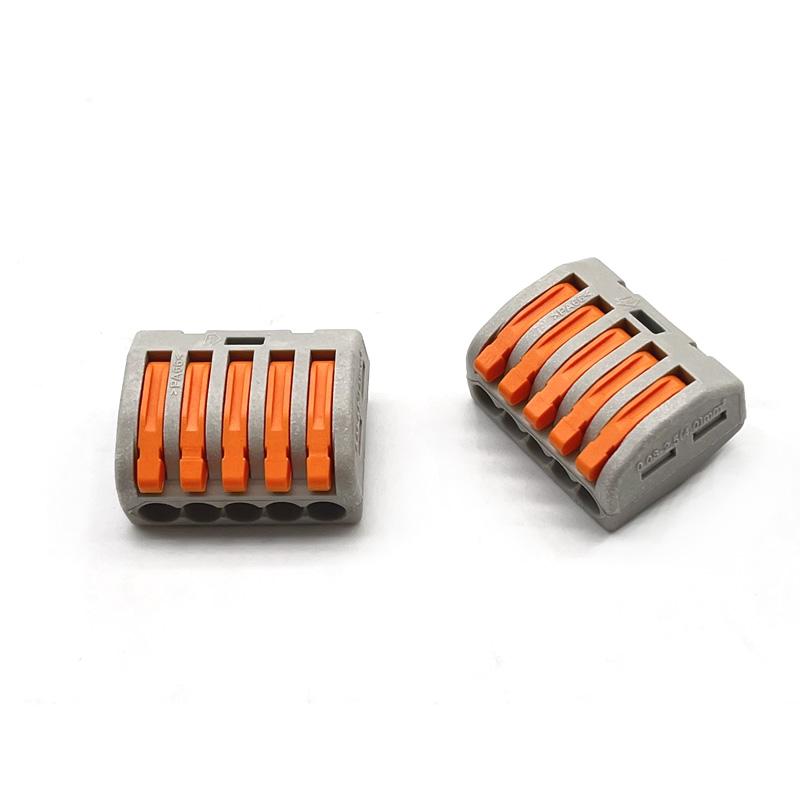

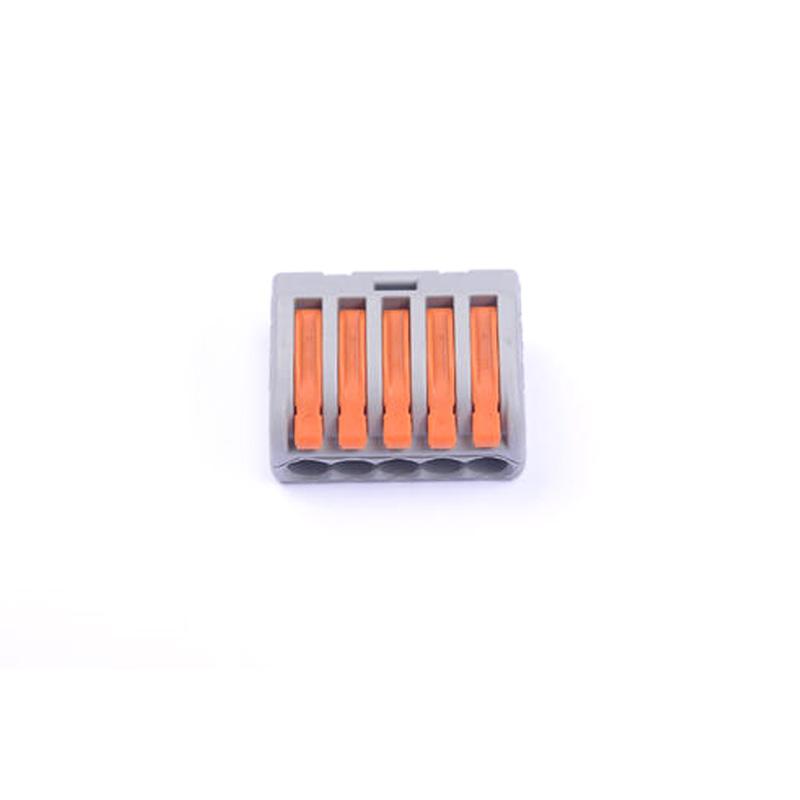

Features of PCT-215:

5 Way terminal block
Supplied as a pack of 40
Requires cable stripped to a length of 11-12mm
Reusable
5 conductor connector with operating levers
Easy termination via reduced operating force
Solid conductor size: 0.4mm²-2.5mm²
Stranded conductor size: 0.4mm²-2.5mm²
Fine stranded conductor size: 0.4mm²-4mm²
Test slot for all standard test probes
Max current: 32A
Max voltage: 450V
Height: 14.5mm
Width: 26.4mm
Depth: 20.5mm

electrical connectors

cable connector cable connector supplier

FAQ

1. How does your factory control quality?

We are a Medium size factory, more than 15 quality staffs use CKP, PFMEA to manage our production process, we have made a lot of connectors, cables and wire harnesses for Automobiles, Boats and industries. All products are 100% tested before Delivery.

2. Is there any environmental risk on materials?

We are an ISO9001/ISO14001 certificated company, All our materials are RoHS 2.0 compliant, we select materials from big company and always be tested. Our products have exported to Europe and North America for more than 10 years, we can provide COC if needed.

3. How can I customize our products?

If you have drawings please send to us, if no drawings please send us photos or samples, then tell us your SPEC. For a wire harness we need to know the connector type, wire gauge, wire length and wire diagram.

4. Can you supply OEM & ODM service?

Yes. We have specialized in manufacturing high quality connectors, cables and wire harnesses for more than 10 years, we have a professional engineering team, OEM & ODM projects are warm welcome.

5. Can you provide samples for testing?

After price confirmation, you can require samples to test performance.Most of samples can be supplied by free ( depends on the kinds and qty),but always need you pay for shipping cost.

6. What is your lead time for mass production?

Honestly, it depends on order quantity and products complexity.
Normal lead time is 3-6 weeks.

7. Any warranties with your products?

We manufacturer long life, durable products for industries, Wire harnesses, always 5 years Warranties, connectors and cables we provide 5-10 years Warranties. This is the longest warranties in our industries, only we can give our customer this promise.

If you want to know more about our products,please contact us now!
