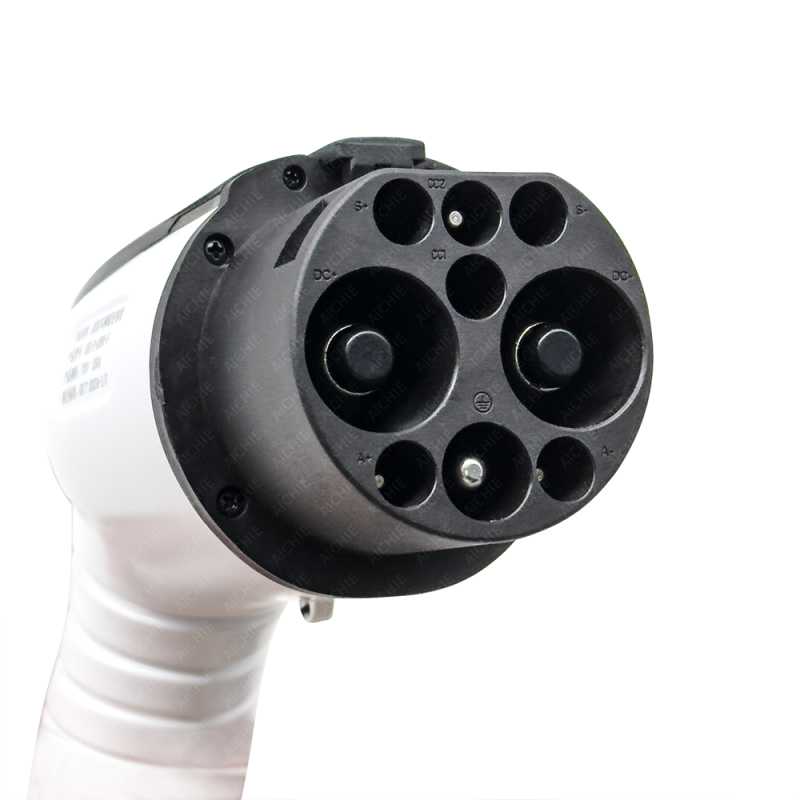

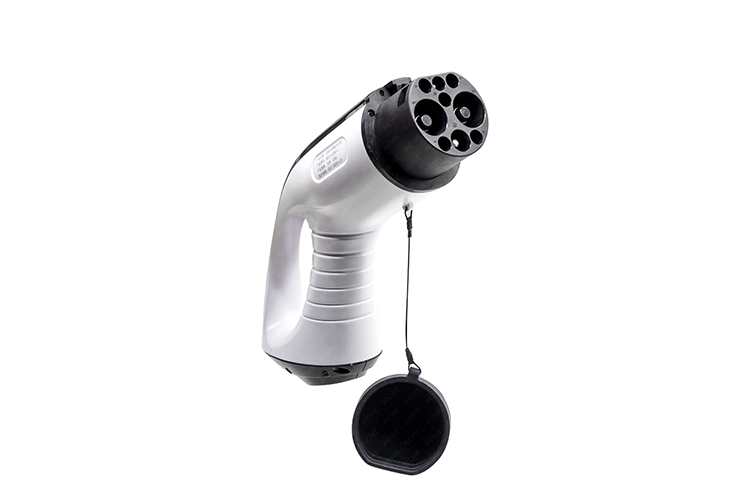

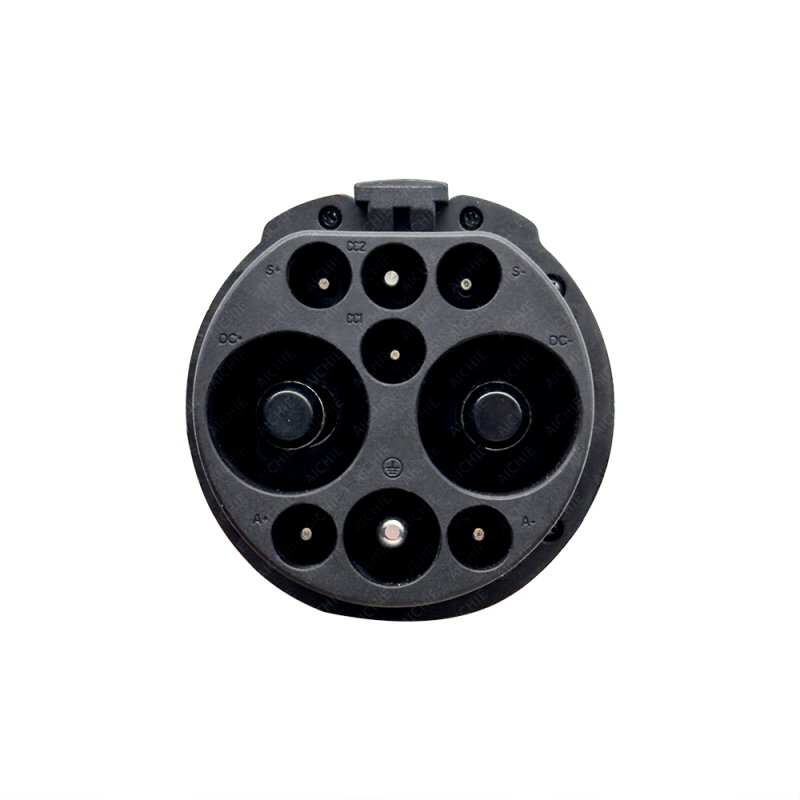

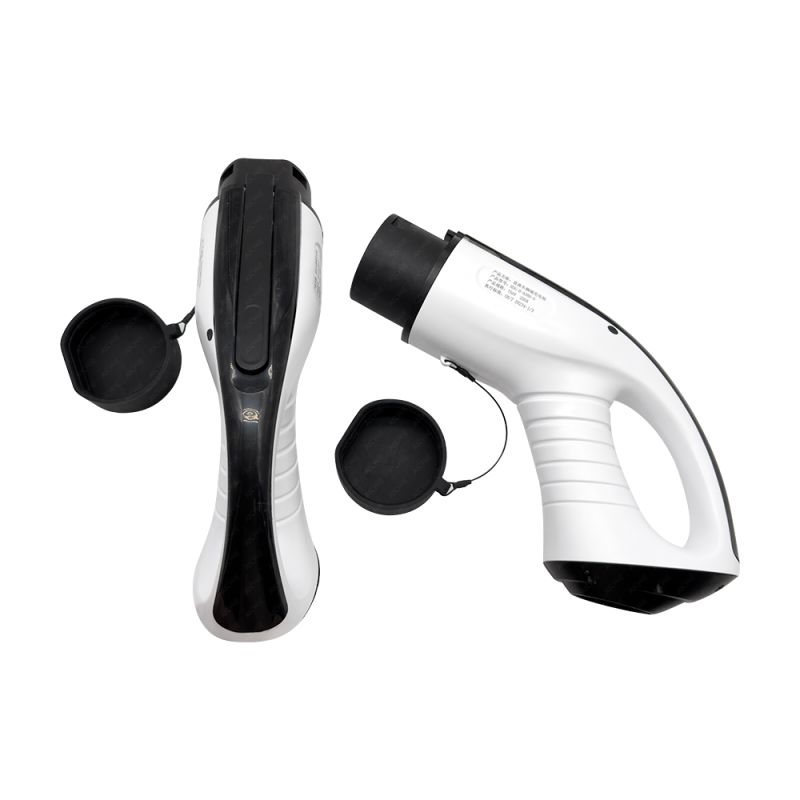

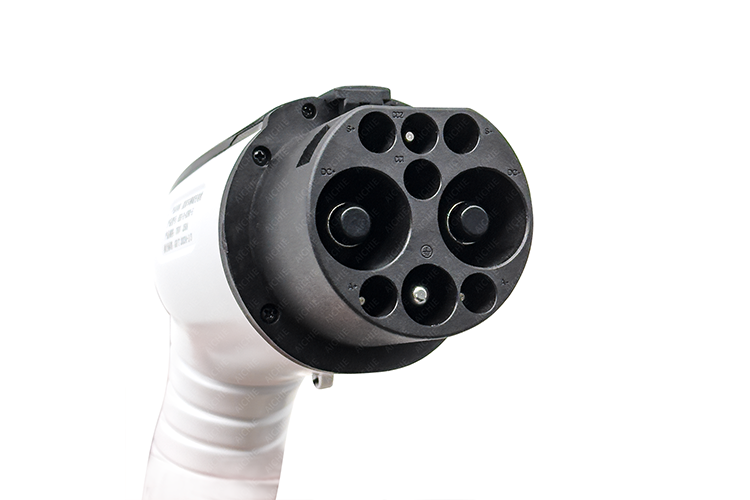

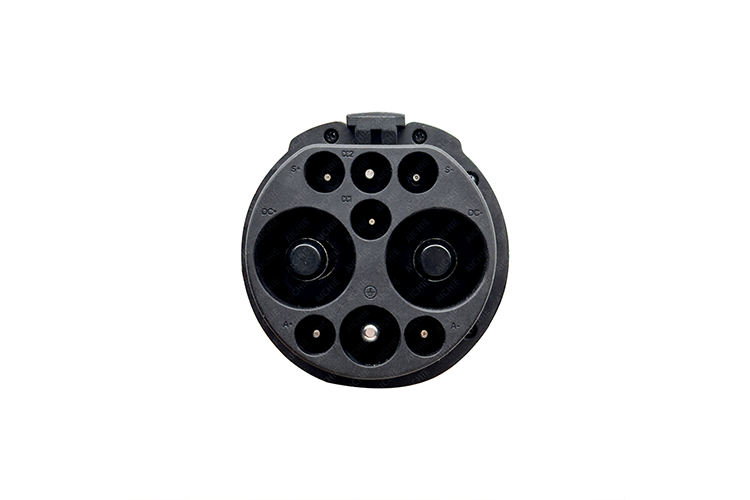

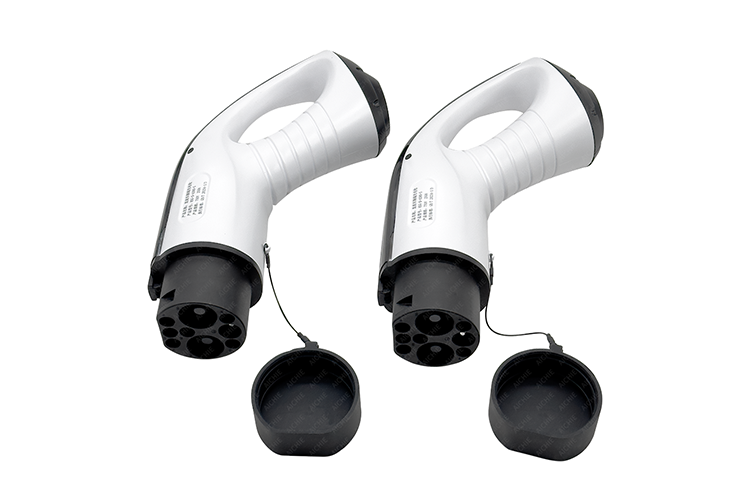

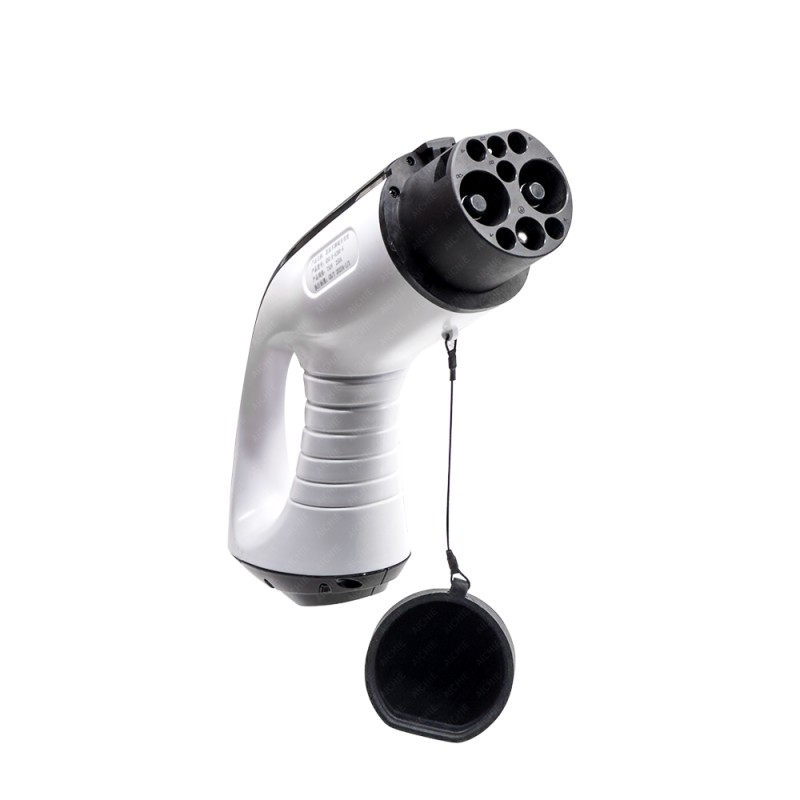

EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable

EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable
EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable
EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable
EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable

EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable

EVSE Accessories Electric Car Vehicle GB Plug Charging DC

  • Item NO.:

    AC-FS271

  • Order(MOQ):

    5

  • Payment:

    T/T,L/C,Western Union,Paypal,MoneyGram

  • Product Origin:

    China

  • Color:

    Black White or Customized

  • Weight：

    1000
Inquiry now

EVSE DC EV Charger Plug 80/125/200/250A Electric Car Vehicle GB Charging Station Plug Without Cable

Rated Current: 80/125/200/250A
Operation Voltage: 750~1000V
Insulation Reistance: >2000MΩ ( DC1000V )
Terminal Temperature Rise: <50K
Contact Resistance: 0.5m Ω Max
Withstand Voltage: 3200V
Cable: Without Cable
Material: Thermoplastic, Flame Retardant Grade UL94 V-0
Pin Material: Copper Alloy, Silver + Thermoplastic On The Top
Operating Temperture: -30℃~+50℃
Warranty: 12 Months

DC EV Plug

EV Plug GB Charger

connecting mc4 connectors
